Better Air Filter Finder

Filtrete · standard filter · P33

Filtrete MPR 800

MERV 10 · MPR 800

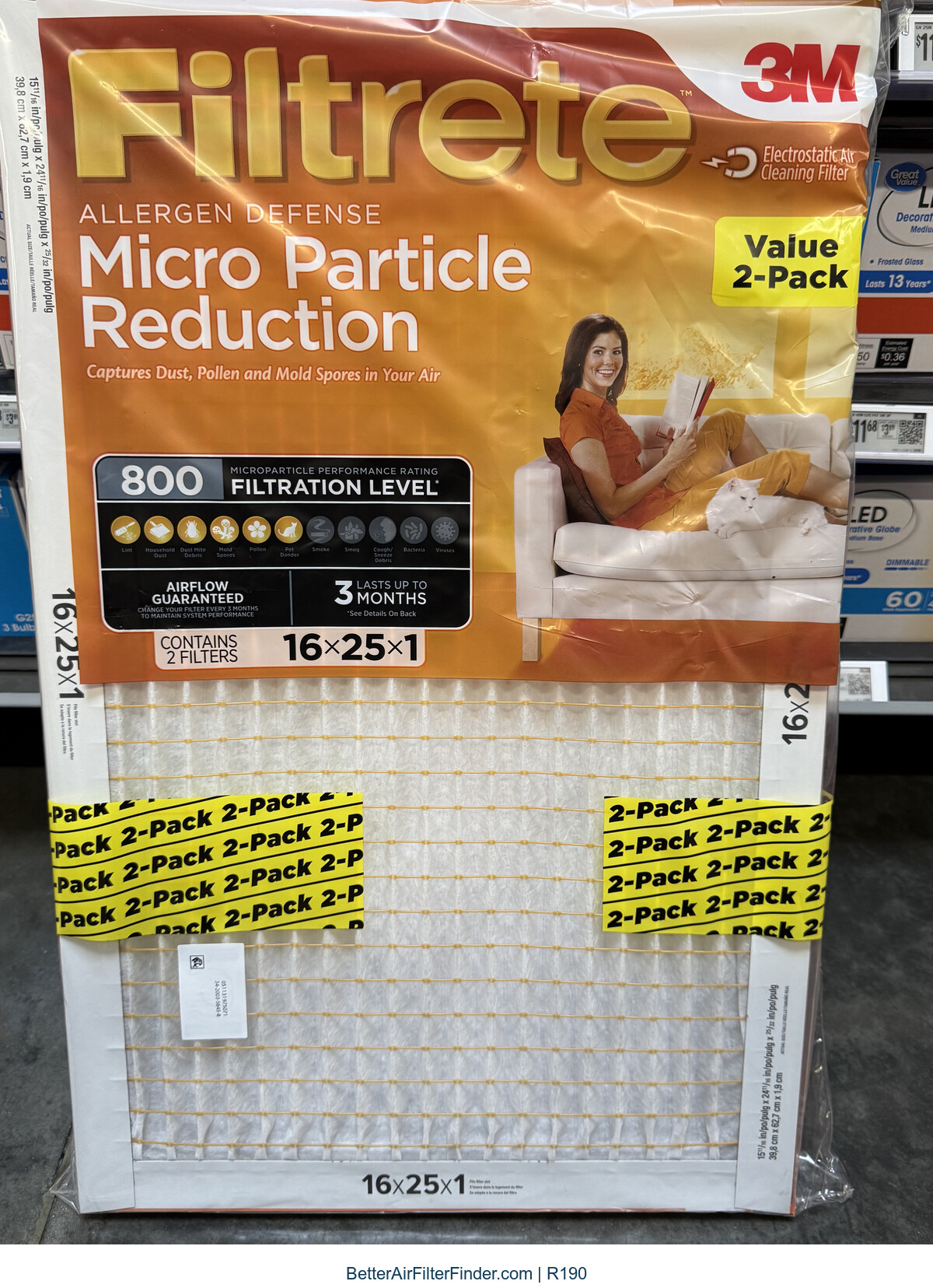

Filtrete MPR 800 photographed packaging

Open photograph to enlarge. Package appearance and specifications may vary by revision.

Nominal size
16 × 25 × 1 in
Actual dimensions
15-11/16 x 24-11/16 x 25/32 in
Package quantity
2
UPC
051131975071
Check the whole fit.

Match actual width, height and depth to your opening and seal. A shared nominal size alone does not prove compatibility.

Check my setupInspect the sources

Printed package claims, not Better Air laboratory testing. No current price is asserted for this record.

Airflow resistance

Filter pressure drop

Photographed label: not available at 1,000 CFM · Available printed range: 410–1390 CFM.

Filtrete MPR 800 printed initial filter pressure drop 0.0000.123480.246950.3610430.481390 Airflow (CFM) in. w.c. 410 CFM: 0.09 in. w.c. · new-pressure-016615 CFM: 0.16 in. w.c. · new-pressure-017820 CFM: 0.23 in. w.c. · new-pressure-0181025 CFM: 0.32 in. w.c. · new-pressure-0191390 CFM: 0.48 in. w.c. · new-pressure-020
Printed points only. No connecting curve, estimate or extrapolation. Source transcriptions, not measurements taken by Better Air.

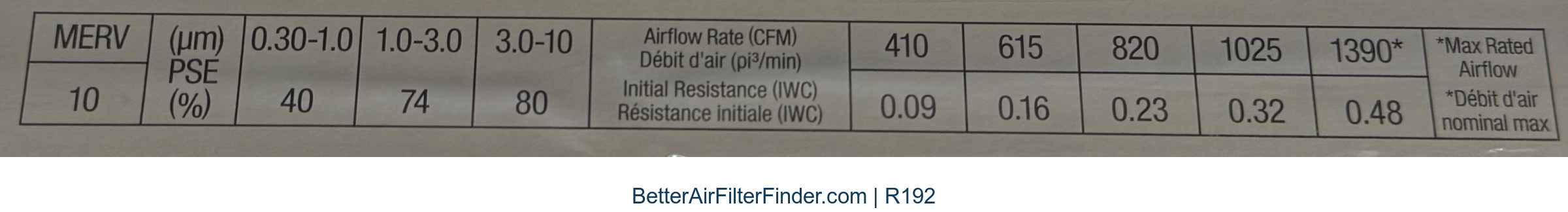

Usable photographed label transcriptions
Airflow (CFM)Pressure drop (in. w.c.)Source / observation
4100.09R192new-pressure-016
6150.16R192new-pressure-017
8200.23R192new-pressure-018
10250.32R192new-pressure-019
1390 *0.48R192new-pressure-020
Test context and interpretation

* Manufacturer maximum-rated airflow marker. This does not establish your installed airflow.

Printed initial resistance; additional test conditions not recovered.

Filter differential pressure is only one part of system resistance. These points do not establish your delivered airflow, fan energy use, loaded performance or safe service interval. No interpolation is applied.

Check our work

Sources and identification

Photographed-source IDs: R190, R191, R192. These refer to immutable private originals; only individually approved sanitized crops are published.

Filtrete MPR 800 source label R192Open photographed label →
Which source supports each identity field?
brand
R190
name
R190
upc
R191
nominal size
R190
actual dimensions
R190
mpr
R190
merv
R192
pack qty
R190

No source PDF copies, original photographs or private metadata are distributed. Read the evidence method and correction policy.
