Better Air Filter Finder

Filtrete · standard filter · P32

Filtrete MPR 1000

MERV 11 · MPR 1000

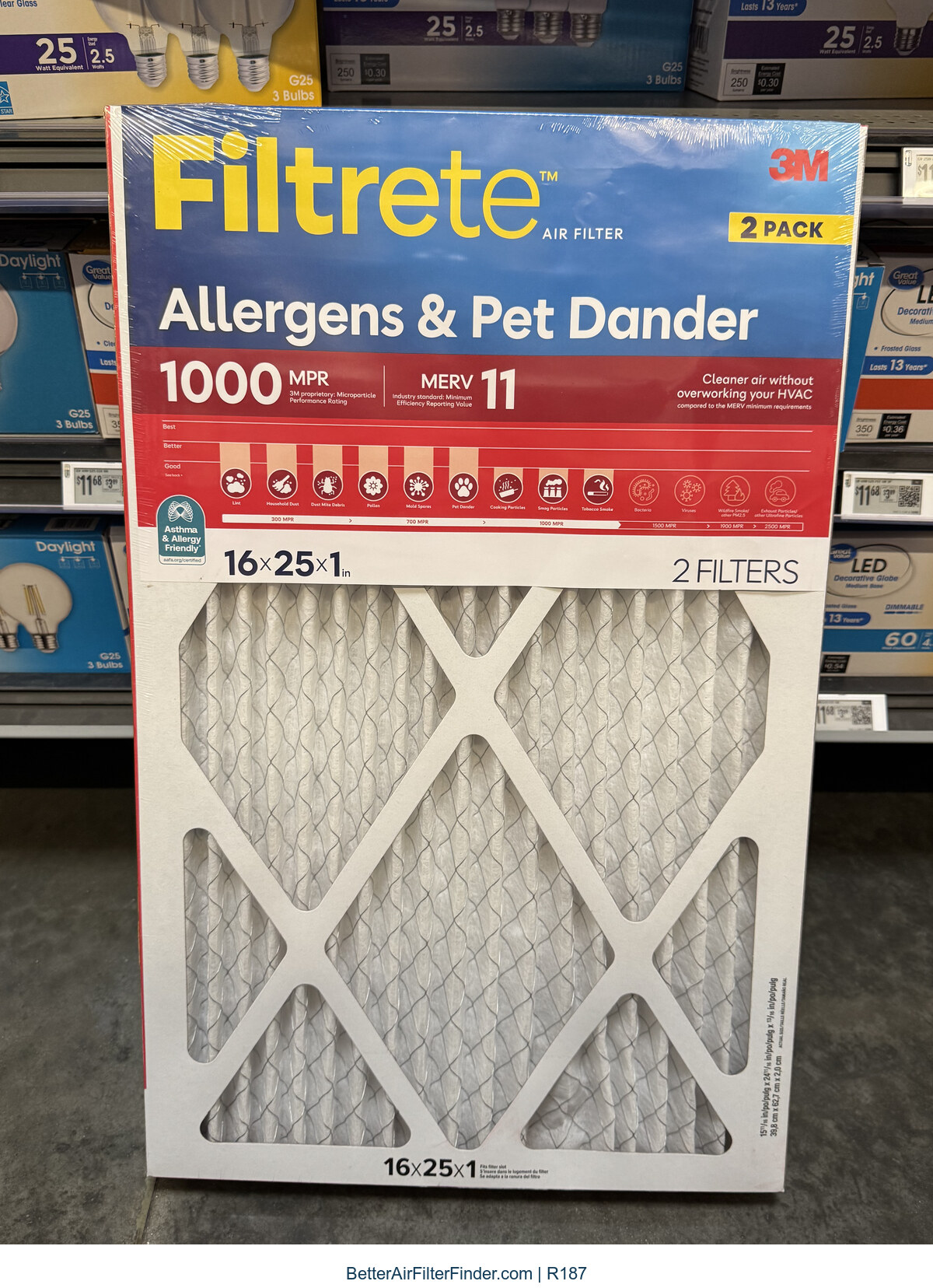

Filtrete MPR 1000 photographed packaging

Open photograph to enlarge. Package appearance and specifications may vary by revision.

Nominal size
16 × 25 × 1 in
Actual dimensions
15-11/16 x 24-11/16 x 13/16 in
Package quantity
2
UPC
051141314556
Check the whole fit.

Match actual width, height and depth to your opening and seal. A shared nominal size alone does not prove compatibility.

Check my setupInspect the sources

Printed package claims, not Better Air laboratory testing. No current price is asserted for this record.

Airflow resistance

Filter pressure drop

Photographed label: not available at 1,000 CFM · Available printed range: 410–1390 CFM.

Filtrete MPR 1000 printed initial filter pressure drop 0.0000.123480.246950.3610430.481390 Airflow (CFM) in. w.c. 410 CFM: 0.09 in. w.c. · new-pressure-011615 CFM: 0.16 in. w.c. · new-pressure-012820 CFM: 0.23 in. w.c. · new-pressure-0131025 CFM: 0.32 in. w.c. · new-pressure-0141390 CFM: 0.48 in. w.c. · new-pressure-015
Printed points only. No connecting curve, estimate or extrapolation. Source transcriptions, not measurements taken by Better Air.
Usable photographed label transcriptions
Airflow (CFM)Pressure drop (in. w.c.)Source / observation
4100.09R189new-pressure-011
6150.16R189new-pressure-012
8200.23R189new-pressure-013
10250.32R189new-pressure-014
1390 *0.48R189new-pressure-015
Test context and interpretation

* Manufacturer maximum-rated airflow marker. This does not establish your installed airflow.

Printed initial resistance; additional test conditions not recovered.

Filter differential pressure is only one part of system resistance. These points do not establish your delivered airflow, fan energy use, loaded performance or safe service interval. No interpolation is applied.

Check our work

Sources and identification

Photographed-source IDs: R187, R188, R189. These refer to immutable private originals; only individually approved sanitized crops are published.

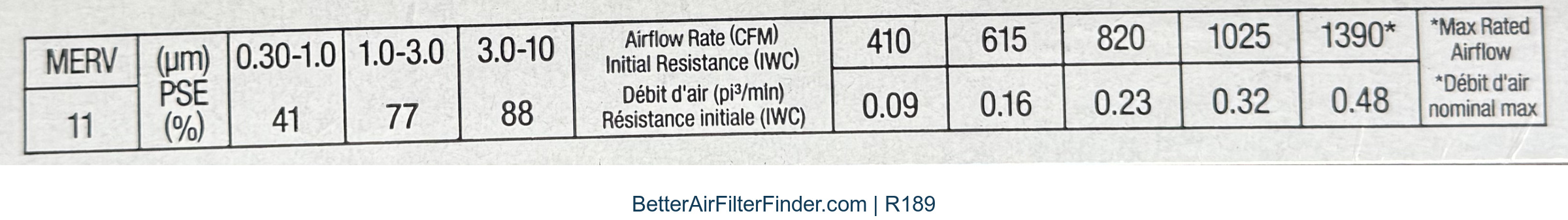

Filtrete MPR 1000 source label R189Open photographed label →
Which source supports each identity field?
brand
R187
name
R187
upc
R188
nominal size
R187
actual dimensions
R187
mpr
R187
merv
R189
pack qty
R187

No source PDF copies, original photographs or private metadata are distributed. Read the evidence method and correction policy.
