Better Air Filter Finder

Filtrete · standard filter · P31

Filtrete MPR 300

MERV 5 · MPR 300

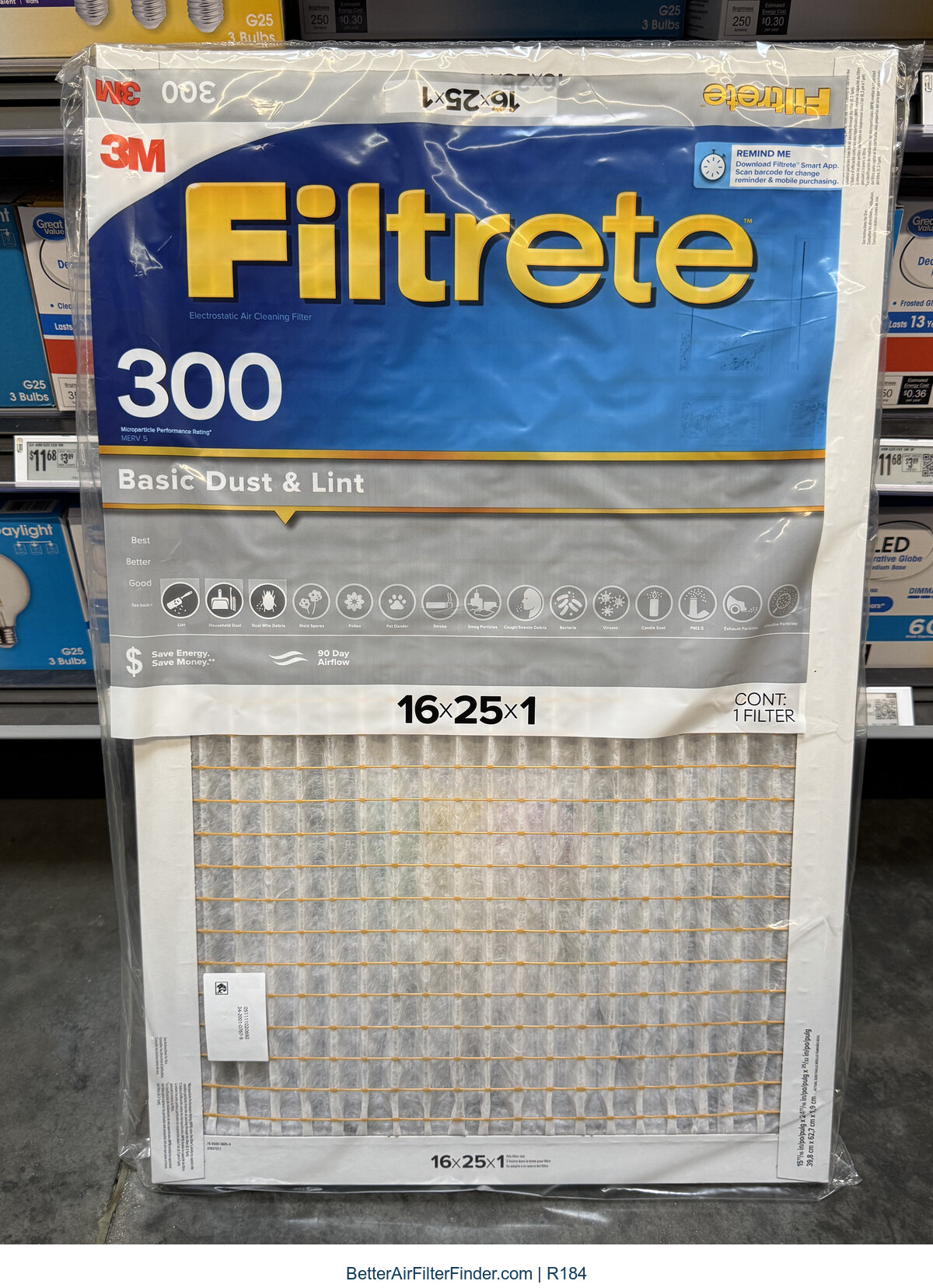

Filtrete MPR 300 photographed packaging

Open photograph to enlarge. Package appearance and specifications may vary by revision.

Nominal size
16 × 25 × 1 in
Actual dimensions
15-11/16 x 24-11/16 x 25/32 in
Package quantity
1
UPC
051111020692
Check the whole fit.

Match actual width, height and depth to your opening and seal. A shared nominal size alone does not prove compatibility.

Check my setupInspect the sources

Printed package claims, not Better Air laboratory testing. No current price is asserted for this record.

Airflow resistance

Filter pressure drop

Photographed label: not available at 1,000 CFM · Available printed range: 410–1390 CFM.

Filtrete MPR 300 printed initial filter pressure drop 0.0000.123480.236950.3510430.471390 Airflow (CFM) in. w.c. 410 CFM: 0.09 in. w.c. · new-pressure-006615 CFM: 0.15 in. w.c. · new-pressure-007820 CFM: 0.22 in. w.c. · new-pressure-0081025 CFM: 0.31 in. w.c. · new-pressure-0091390 CFM: 0.47 in. w.c. · new-pressure-010
Printed points only. No connecting curve, estimate or extrapolation. Source transcriptions, not measurements taken by Better Air.
Usable photographed label transcriptions
Airflow (CFM)Pressure drop (in. w.c.)Source / observation
4100.09R186new-pressure-006
6150.15R186new-pressure-007
8200.22R186new-pressure-008
10250.31R186new-pressure-009
1390 *0.47R186new-pressure-010
Test context and interpretation

* Manufacturer maximum-rated airflow marker. This does not establish your installed airflow.

Printed initial resistance; additional test conditions not recovered.

Filter differential pressure is only one part of system resistance. These points do not establish your delivered airflow, fan energy use, loaded performance or safe service interval. No interpolation is applied.

Check our work

Sources and identification

Photographed-source IDs: R184, R185, R186. These refer to immutable private originals; only individually approved sanitized crops are published.

Filtrete MPR 300 source label R186Open photographed label →
Which source supports each identity field?
brand
R184
name
R184
upc
R185
nominal size
R184
actual dimensions
R184
mpr
R184
merv
R186
pack qty
R184

No source PDF copies, original photographs or private metadata are distributed. Read the evidence method and correction policy.
